Setting up Shared Enterprise Actions

Summary

I recently had a customer that wanted to set up shared runners in their enterprise but the docs weren’t super clear so I wrote up these steps to make it easier.

The TLDR; is that the permissions are restrictive by default so you have to go to each layer and enable actions and the runner.

Documentation links:

• Creating a self-hosted runner

• Fine-grained access for Runner groups

• Make enterprise runners available to repos

• Runner group access policies

Process

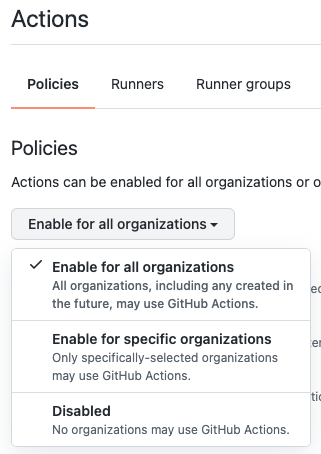

• Go to the Enterprise > Policies > Actions.

  • Ensure that Actions is enabled for all organizations (or at minimum, the specific organizations that hold the repos that need the runner)

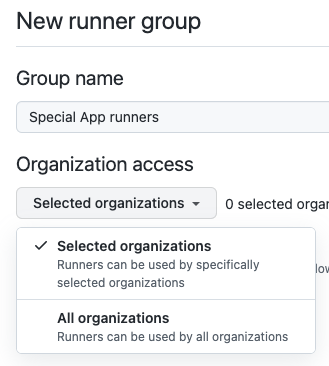

• Create (or update) a runner group and select all organizations (or the specific organizations)
• Create a new runner and add it to the runner group
• Now go to each org that needs to use the runner and do the following:

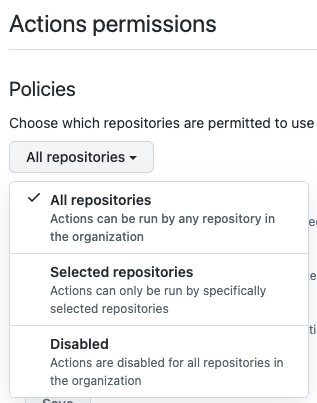

  • Verify Actions is enabled at the org level (org > settings > actions > general

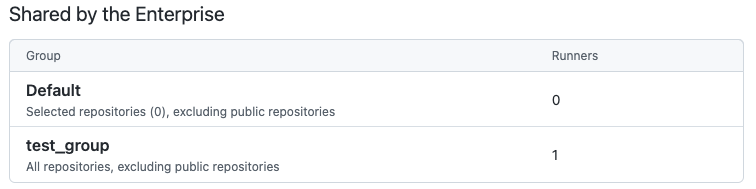

• In the Runner Groups, select the runner group under the “Shared by the Enterprise” header

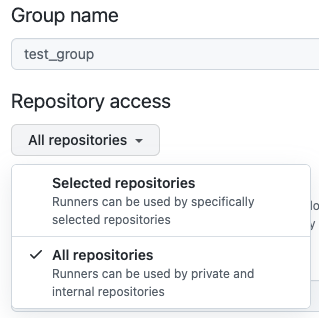

• Specify either all repos, or select the desired repos for access:

Automation

Obviously, this is a manual process and won’t work if you have a large number of organizations. Since enterprises have so many different variations, I’m only including the base API calls.

# create runner group
curl \
  -X POST \
  -H "Accept: application/vnd.github.v3+json" \
  https://api.github.com/enterprises/ENTERPRISE/actions/runner-groups \
  -d '{"name":"name"}'

# Get a registration token
curl \
  -X POST \
  -H "Accept: application/vnd.github.v3+json" \
  https://api.github.com/enterprises/ENTERPRISE/actions/runners/registration-token

# Add a runner to the group
curl \
  -X PUT \
  -H "Accept: application/vnd.github.v3+json" \
  https://api.github.com/enterprises/ENTERPRISE/actions/runner-groups/42/runners/42

# Ensure that all the repos in an org have the runner
curl \
  -X PUT \
  -H "Accept: application/vnd.github.v3+json" \
  https://api.github.com/orgs/ORG/actions/runner-groups/42/repositories \
  -d '{"selected_repository_ids":[42]}'

Closing

If you have any questions or feedback, please feel free to contact me: @jennamassardo
